Geotextile vs Geomembrane: What Is the Difference?

Introduction

Geotextile vs geomembrane is a common comparison in civil engineering, environmental protection, and mining projects.
Although these two geosynthetic materials are often used together, they serve completely different functions within a project.

Understanding the difference between geotextile and geomembrane helps engineers, contractors, and buyers select the correct material and avoid costly design or construction mistakes.

Basic Difference – Permeable vs Impermeable

The simplest way to understand geotextile vs geomembrane is this:

• Geotextile → permeable fabric

• Geomembrane → impermeable liner

They are designed to perform opposite roles in a geosynthetic system.

What Is Geotextile?

A geotextile is a permeable synthetic fabric, typically manufactured from polypropylene or polyester.

Main Functions of Geotextile

Geotextiles are used to:

• Separate different soil layers

• Filter water while retaining soil particles

• Reinforce weak subgrades

• Protect geomembranes from puncture damage

Because water can pass through geotextiles, they are not used for waterproofing.

Geotextile

Common Geotextile Applications

• Road and railway construction

• Drainage systems

• Erosion control projects

• Cushion layers beneath geomembranes

What Is Geomembrane?

A geomembrane is a continuous, impermeable polymer sheet designed to prevent the migration of liquids or gases.

Common geomembrane materials include:

• HDPE geomembrane

• LLDPE geomembrane

• PVC geomembrane

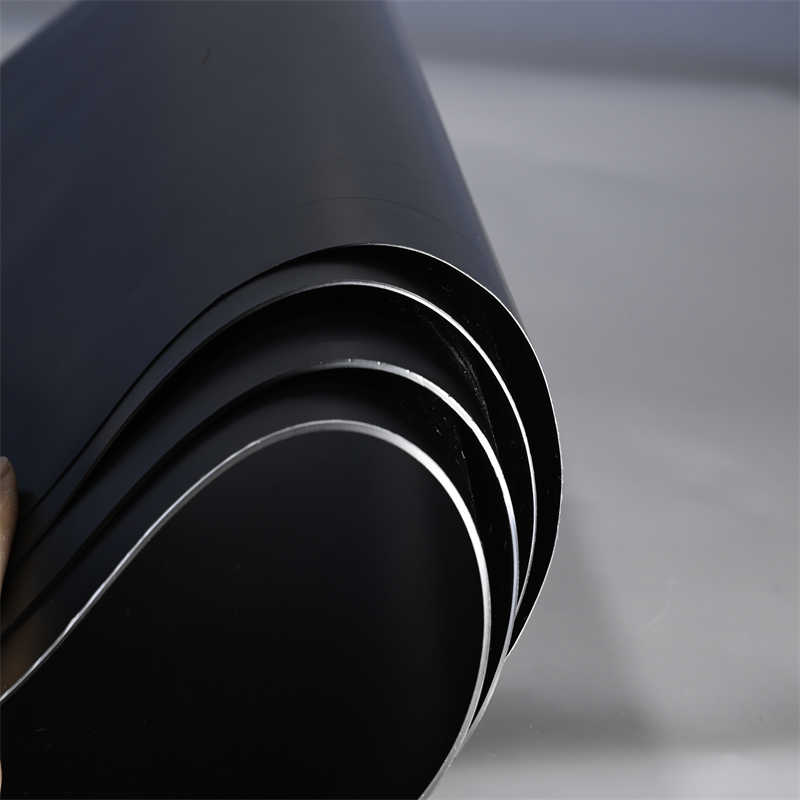

  geomembrane

Main Functions of Geomembrane

Geomembranes are used to:

• Contain water, chemicals, and waste

• Prevent groundwater contamination

• Provide waterproofing and environmental protection

Common Geomembrane Applications

• Pond and reservoir lining

• Landfill liner systems

• Mining tailings and heap leach pads

• Wastewater treatment facilities

Key Differences Between Geotextile and Geomembrane

How Geotextile and Geomembrane Work Together

In real engineering projects, geotextile vs geomembrane is not an either-or choice.

They are often combined in a composite liner system:

• Geotextile protects the geomembrane from puncture and stress

• Geomembrane provides the impermeable barrier

This system is widely used in landfills, mining ponds, reservoirs, and wastewater facilities.

Which One Do You Need?

Ask one key question:

• Need water to pass through? → Choose geotextile

• Need to block water or chemicals? → Choose geomembrane

If both functions are required, a combined geotextile and geomembrane system is usually the best solution.

Final Thoughts

The difference between geotextile vs geomembrane is not about quality or price—it is about function.

Each material plays a critical role in geosynthetic engineering, and using the wrong one can result in drainage failure, leakage, or structural damage.

Experienced manufacturers such as Tinhy Geosynthetics Co., Ltd. supply both geotextiles and geomembranes and assist engineers in designing complete, reliable geosynthetic systems.
