HDPE Liners Explained: Uses, Features & Installation

HDPE liners, also called HDPE geomembranes, are widely used in environmental, civil, and industrial containment projects. Their combination of mechanical strength, chemical resistance, and impermeability makes them one of the most reliable liner materials globally.

This article explains the key properties of HDPE liners and why they are specified in critical applications such as landfills, ponds, reservoirs, and mining facilities.

1. Physical Properties

Thickness Range

HDPE liners are available in a variety of thicknesses:

• 0.5 mm

• 0.75 mm

• 1.0 mm

• 1.5 mm (60 mil)

• 2.0 mm and above

Thicker liners offer higher puncture resistance and longer service life.

Density

• Typical density: ≥ 0.94 g/cm³

• High density ensures stiffness, durability, and mechanical reliability.

Color Options

• Standard: Black

• Others: white/black dual color, green, blue (for specific applications)

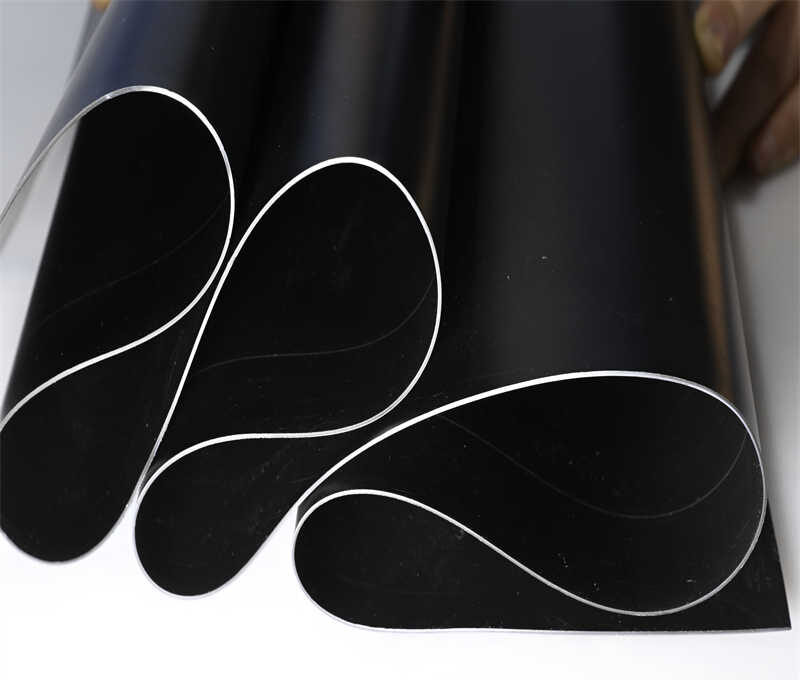

HDPE Liner

2. Impermeability

HDPE liners are known for their extremely low permeability:

• Hydraulic conductivity: ~1 × 10⁻¹⁴ to 1 × 10⁻¹⁶ cm/s

This makes them:

• Practically waterproof

• Ideal for liquid and gas containment

• Superior to clay and concrete liners

3. Mechanical Properties

Tensile Strength

• Resists stretching and tearing under load

• Ensures structural stability over time

Elongation at Break

• Typically ≥ 700%

• Accommodates ground movement without failure

Puncture and Tear Resistance

• High resistance to sharp objects and stone pressure

• Tear resistance prevents crack propagation under stress

• Enhanced with protective geotextiles

4. Chemical Resistance

HDPE liners resist a wide range of chemicals:

• Acids, alkalis, salts

• Organic solvents, hydrocarbons

• Industrial wastewater

Ideal for:

• Hazardous waste landfills

• Chemical ponds

• Mining leach pads

5. UV and Weather Resistance

HDPE contains:

• 2–3% carbon black

• Antioxidants and stabilizers

These additives provide:

• Excellent UV resistance

• Long-term outdoor durability

• Resistance to oxidation and thermal aging

Service life can exceed 30–50 years when properly installed.

6. Thermal Properties

Operating Temperature

• –40°C to +60°C

HDPE maintains performance in:

• Cold climates

• High solar exposure

Note: HDPE is stiffer at low temperatures compared to LLDPE.

7. Stress Crack Resistance

• High-quality HDPE has excellent environmental stress crack resistance (ESCR)

• Compliant with ASTM D5397

• Critical for long-term containment in landfills and reservoirs

8. Installation and Welding

• Weldable via hot wedge or extrusion welding

• Produces strong, homogeneous seams

• Allows non-destructive seam testing (air channel, vacuum)

Proper welding ensures the liner system remains impermeable.

9. Environmental and Safety Features

• Non-toxic and chemically inert

• Safe for drinking water reservoirs and aquaculture

• Recyclable material

• Does not leach harmful substances

10. Advantages Summary

Conclusion

HDPE liners deliver an outstanding combination of:

• Impermeability

• Mechanical strength

• Chemical resistance

• Long-term durability

They are the preferred choice for pond lining, landfill containment, reservoirs, and mining projects worldwide.

When selecting an HDPE liner, consider:

• Thickness requirements

• Chemical exposure

• Load conditions

• Installation quality

• Compliance with ASTM and GRI-GM13 standards
