Smooth vs. Textured HDPE Geomembrane: Which One Is Right for Your Project?

HDPE geomembrane is one of the most widely used liner materials for containment, waterproofing, and environmental protection projects. It is commonly applied in landfills, mining containment, wastewater ponds, reservoirs, aquaculture ponds, evaporation ponds, and agricultural water storage systems.

However, many B2B buyers face one common question before placing an order:

Should I choose smooth HDPE geomembrane or textured HDPE geomembrane?

The answer depends on the project application, slope design, subgrade condition, interface friction requirements, installation method, and budget. This article explains the key differences between smooth and textured HDPE geomembranes to help contractors, distributors, engineering companies, and project owners choose the right liner solution.

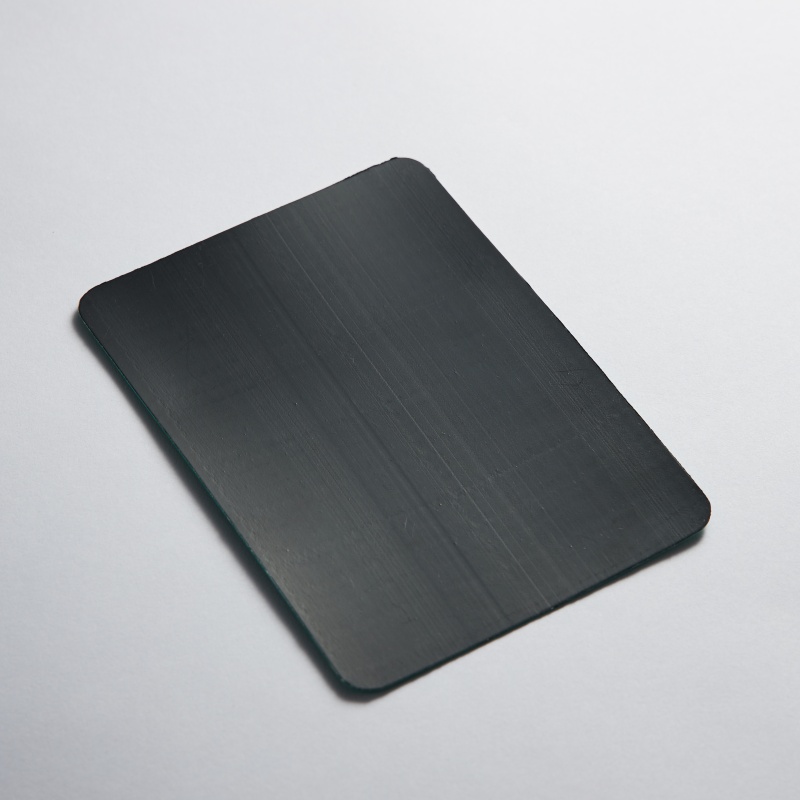

What Is Smooth HDPE Geomembrane?

Smooth HDPE geomembrane has a flat and even surface on both sides. It is designed to provide a reliable anti-seepage barrier for liquid containment and waterproofing applications.

Smooth geomembrane is commonly used in:

• Aquaculture ponds
• Irrigation ponds
• Agricultural reservoirs
• Wastewater treatment ponds
• Evaporation ponds
• Canal lining
• Water storage projects
• General flat-area containment projects

Because of its smooth surface, this type of geomembrane is easy to handle, overlap, weld, and inspect. It is often selected for projects where the liner is installed on flat ground or gentle slopes.

Advantages of Smooth HDPE Geomembrane

1. Easy Installation and Welding

Smooth HDPE geomembrane is easier to deploy and weld than textured geomembrane. During installation, panels can be overlapped and welded by hot wedge welding or extrusion welding. The smooth surface also makes seam inspection more convenient.

2. Cost-Effective for Large Areas

For large-area pond lining or reservoir projects, smooth geomembrane is usually a cost-effective choice. It provides strong anti-seepage performance while keeping material and installation costs competitive.

3. Suitable for Water Containment

Smooth HDPE geomembrane is commonly used in water-related projects because it provides excellent impermeability and is easier to clean when sediment or sludge accumulates.

4. Available in Multiple Thicknesses

Smooth HDPE geomembrane is available in different thicknesses, typically from 0.5 mm to 3.0 mm. This allows buyers to select the right grade according to project requirements, from light-duty agricultural ponds to heavy-duty industrial containment.

What Is Textured HDPE Geomembrane?

Textured HDPE geomembrane has a rough surface that increases interface friction. This surface can be produced through different techniques and is designed to improve stability between the geomembrane and other materials, such as soil, geotextile, or GCL.

Textured geomembrane is commonly used in:

• Landfill slopes
• Landfill covers
• Mining heap leach pads
• Tailings ponds
• Steep embankments
• Composite liner systems
• Projects requiring higher interface friction

Compared with smooth geomembrane, textured geomembrane is especially suitable for slope areas where sliding resistance is important.

Advantages of Textured HDPE Geomembrane

1. Better Interface Friction

The main benefit of textured geomembrane is improved friction performance. In slope projects, the liner must remain stable when placed against soil, geotextile, drainage layers, or GCL. A textured surface helps increase contact resistance and reduce sliding risk.

2. Suitable for Steep Slopes

Landfills and mining sites often include steep slopes. Textured HDPE geomembrane is designed for these conditions and can help improve engineering stability when used as part of a properly designed liner system.

3. Better Compatibility with Composite Liner Systems

Textured geomembrane is often used together with geotextiles, drainage geocomposites, and geosynthetic clay liners. In these systems, interface stability is critical, and textured geomembrane can provide better contact performance than smooth geomembrane.

4. Reliable for Heavy-Duty Projects

For projects such as landfill containment, mining leach pads, and tailings storage, textured geomembrane is often preferred because these applications require both impermeability and slope stability.

Smooth vs. Textured HDPE Geomembrane: Key Differences

How to Choose the Right Surface Type

Choosing between smooth and textured HDPE geomembrane should be based on project design rather than price alone.

Choose Smooth HDPE Geomembrane If:

• The project area is flat or has gentle slopes
• The main purpose is water containment
• The project is an aquaculture pond, reservoir, irrigation pond, or wastewater pond
• Easy installation and cost control are important
• High interface friction is not required

Choose Textured HDPE Geomembrane If:

• The liner will be installed on steep slopes
• The project involves landfill, mining, or tailings containment
• The geomembrane will be used with geotextile or GCL
• Slope stability is a key design requirement
• Higher interface friction is needed

Recommended Thickness by Application

HDPE geomembrane thickness should be selected according to project conditions, liquid type, subgrade quality, and expected service life.

General reference:

• 0.5 mm – 0.75 mm: small ponds, temporary lining, agricultural water storage
• 1.0 mm: aquaculture ponds, irrigation ponds, general water containment
• 1.5 mm: wastewater ponds, reservoirs, medium-duty containment
• 2.0 mm: landfill liners, mining containment, heavy-duty projects
• 2.5 mm – 3.0 mm: special engineering projects with higher durability requirements

For rough subgrade, sharp stones, heavy loads, or hazardous liquids, thicker geomembrane and protective geotextile layers are usually recommended.

Technical Factors Buyers Should Check

Before purchasing HDPE geomembrane, B2B buyers should review the technical data sheet carefully. Key indicators include:

• Thickness
• Tensile strength
• Elongation
• Tear resistance
• Puncture resistance
• Density
• Carbon black content
• Carbon black dispersion
• Stress crack resistance
• Oxidative Induction Time
• UV resistance
• Roll width and roll length

These properties affect installation quality, outdoor durability, welding performance, and long-term service life.

Application Recommendations

Aquaculture Ponds

Smooth HDPE geomembrane is usually recommended. It offers good waterproofing performance, easy cleaning, and competitive cost.

Wastewater Treatment Ponds

Smooth HDPE geomembrane is suitable for most flat wastewater ponds. For industrial wastewater or aggressive environments, thicker geomembrane may be required.

Landfill Projects

Textured HDPE geomembrane is often recommended for side slopes, while smooth or textured geomembrane can be used for base liner areas depending on the design.

Mining Projects

Textured geomembrane is commonly used for slopes and heap leach pads, while smooth geomembrane can be used for flat containment areas.

Reservoirs and Water Storage

Smooth geomembrane is suitable for flat or gentle slope areas. Textured geomembrane can be considered if slope stability is a concern.

Why Work with a Professional HDPE Geomembrane Manufacturer?

A professional manufacturer can provide more than a roll of liner. For B2B buyers, technical support and supply reliability are equally important.

A reliable supplier should offer:

• Smooth and textured geomembrane options
• Thickness from 0.5 mm to 3.0 mm
• Custom roll width and roll length
• Technical data sheets and test reports
• Factory quality control
• Export packaging
• Container loading support
• Project-based product recommendations
• Fast quotation and delivery

Choosing the right supplier helps reduce procurement risk and ensures that the geomembrane matches the application requirements.

Conclusion

Smooth and textured HDPE geomembranes are both reliable liner materials, but they are designed for different project conditions.

Smooth HDPE geomembrane is suitable for ponds, reservoirs, wastewater lagoons, and flat containment areas. It is easy to install, weld, and inspect. Textured HDPE geomembrane is better for slopes, landfills, mining projects, and composite liner systems where higher interface friction is required.

Before purchasing, buyers should confirm the project type, slope condition, thickness, surface type, roll size, technical standards, and installation requirements.

If you need HDPE geomembrane for landfill, mining, wastewater, aquaculture, reservoir, or agricultural projects, contact our team for product recommendations, factory pricing, and technical support.

FAQ

Is textured geomembrane better than smooth geomembrane?

Not always. Textured geomembrane is better for slopes and projects requiring higher interface friction. Smooth geomembrane is more suitable for flat areas, ponds, reservoirs, and general water containment.

Can smooth geomembrane be used on slopes?

It can be used on gentle slopes, but for steep slopes or composite liner systems, textured geomembrane is usually recommended.

Which geomembrane is better for aquaculture ponds?

Smooth HDPE geomembrane is commonly used for aquaculture ponds because it is cost-effective, easy to install, and easier to clean.

Which geomembrane is better for landfill projects?

Textured HDPE geomembrane is often used for landfill slopes because it improves interface stability. The final design should follow project specifications.

How can I get a quotation?

Please send your project type, thickness, surface type, quantity, roll size, destination port, and technical requirements. Our team will recommend the most suitable geomembrane solution.
